Description
This device is for fans, not humidifiers! For actual humidifier control, look at either : DSH-2 or HS-1

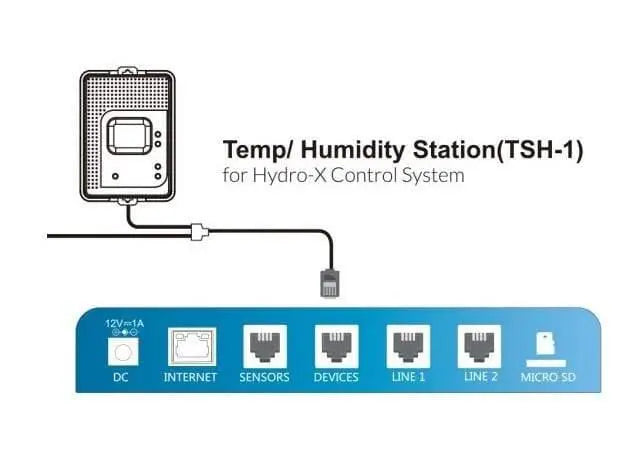

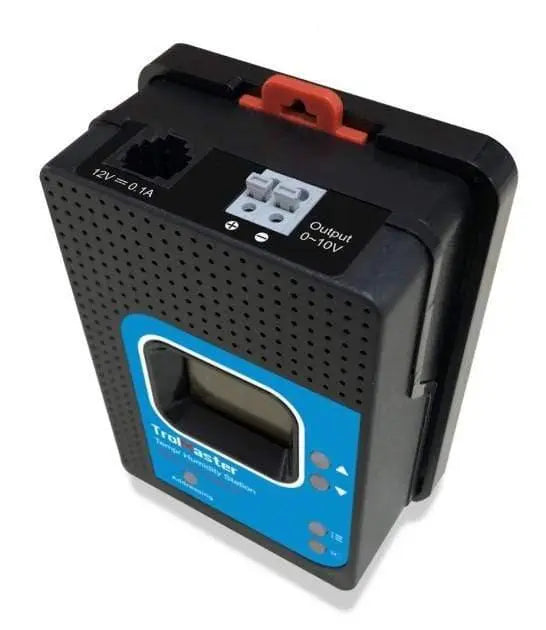

The Trolmaster TSH-1 Temperature/Humidity Station is a 0-10 volt analogue output control station that works with the HCS-1 and HCS-2 controllers. The TSH-1 can be configured to control either a temperature or a humidity device that requires a variable 0-10 volt input signal.
The TSH-1 is capable of controlling variable speed fans, vents or any other device that accepts a 0-10 volt input. It features separate day and night “idle” speed settings built into the TSH-1 as well as separate Day / Night setpoints accessed through the HCS controller.
General Information
Output Voltage - -10V
Maximum Current - 1A
Working Environment - Temperature 32-122°F, Humidity=90%
Packaging Dimensions - 160mm(L) x 86mm(W) x 86mm(H)
Benefits
LCD Display, Easy Operation

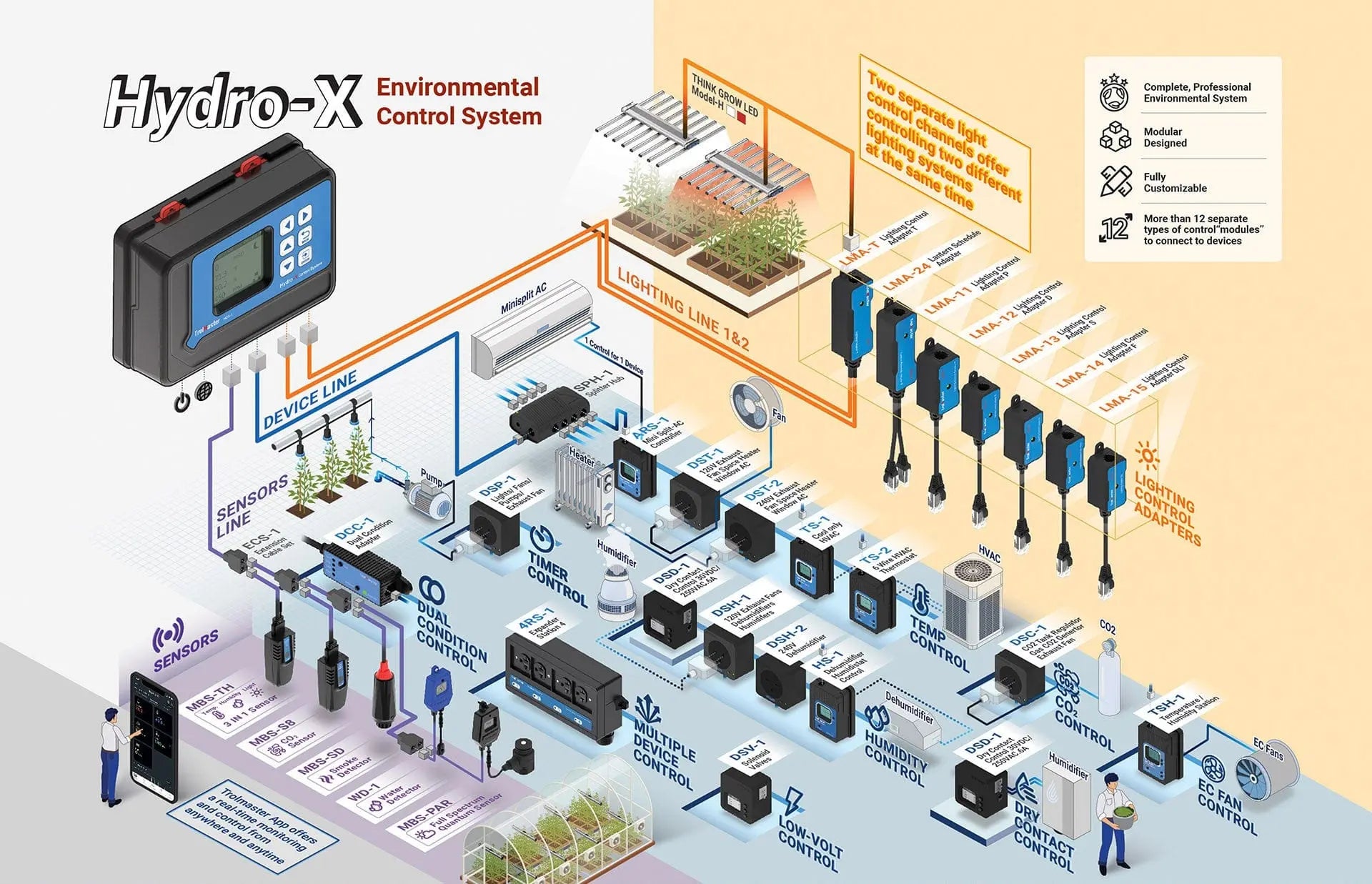

Seamless Connection with Hydro-X and Hydro-X Pro
Micro-SD Slot for Firmware Upgrade
Assignable control of Humidity or Temperature
Plug & Play
How to Use
Comes with the following:
1 x Temperature/Humidity Station (TSH-1)
1 x 16ft RJ12 Cable
1 x 4ft RJ12 Cable
1 x RJ12 T-Splitter
