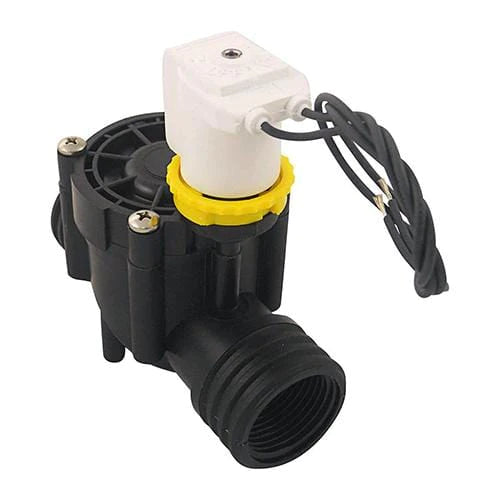

RPE Solenoid Valve - 24v AC

These Seconda series solenoid valves are 2-way normally closed with either 3/4" or 1"  BSP female threaded inlet and outlet ports.  You'll likely need to extend the wire on your solenoid as well, so get some wire and these waterproof connectors.  If you can't be arsed to build all the connections from the pump, get yourself the whip kit! We've done it for you.

Note: Don't get hung up on the second or third series! The third series you might see available at other shops are food-grade applications - we don't sell them and you won't really need them, but just in case you were scratching your head (as we were at first!)

• Operating pressure range of 0.5 – 10 bar (or 7 – 145 psi)
• 24v AC
• Manual override which can be used when electrical power is not available.

The solenoid valve is moulded polyamide made of 30% fibre glass which provides a durable yet lightweight valve. The diaphragm seal, solenoid armature seal and O-rings are produced in NBR (Buna). Internal metal parts are produced in stainless steel. Construction of the valve uses screw fixings to allow for in-service inspection and cleaning when required.

The Seconda Series are available in normally-closed, normally-open and latching (bistable) versions.

The Seconda Series solenoid valves are efficient and durable providing a cost-effective and reliable method of controlling water flow in a wide range of uses, including but not limited to small-scale irrigation of terraces, greenhouses and nurseries, ornamental water features and small gardens.
